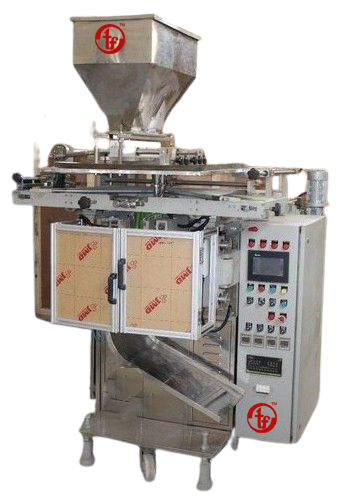

Multi Track Packing Machine For Granules - MODEL tORQ -MT-600 C
FEATURES- ACCURATE FILLING AND DOSING
BAGGER
|
PACKING MATERIAL
|
LAMINATED FILM ROLL 2/3/4 LAYER
|
|
PACKING RANGE
|
2 GM TO 5GM
|
|
MACHINE SPEED
|
UP TO 300 PPM
|
|
NO OF TRACK
|
4 TRACK TO 6 TRACK
|
|
MAX ROLL WIDTH
|
600 MM
|
|
MAXIMUM POUCH LENGTH
|
150MM
|
|
FILM DRAW MECHANISM
|
SERVO/GEARED MOTOR
|
|
HORIZONTAL AND VERTICAL SEAL
|
MECHANICAL ( CAM BASED)
|
|
TYPES OF SEALING
|
FOUR SIDE SEAL
|
|
AUGER FILLER
|
SERVO 1.5 KW PER TRACK
|
|
POWER CONSUMPTION
|
12 KW, 3 PHASE
|
|
AIR CONSUMPTION
|
6 CFM@ 7 KG/ SQ CM
|
|
MACHINE DIMENSION
|
1500 KGS
|
|
MACHINE STRUCTURE
|
MS POWDER COATED
|
|
CONTACT PARTS
|
SS-304/SS-316 ( FOOD GRADE)
|
| OPTIONAL ATTACHMENTS |
FILLING ACCURACY |
|
ONLINE PRINTING
|
NITROGEN FLUSHING
|
|
FILLING ACCURACY +/- 1%
|
LAMINATE REJECTION +/ - = 1%
|
EFFICIENT- ACCURATE PACKAGING MATERIALS /APPLICATIONS
- 1. SPICES ( KITCHEN MASALA)
- 2. SEASONING POWDER
- 3. MILK POWDER
- 4. JALJEERA POWDER
- 5. INSTANT MIXES
