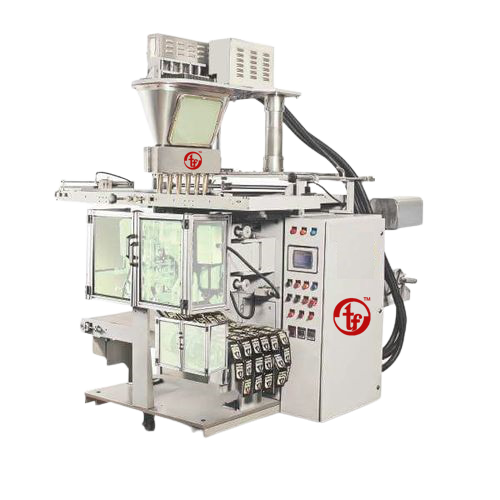

Multi Track Packing Machine With Servo Auger Filler Powder Packing - MODEL tORQ -MT-600 P
FEATURES- ACCURATE FILLING AND DOSING
BAGGER
|
PACKING MATERIAL
|
LAMINATED FILM ROLL 2/3/4 LAYER
|
|
PACKING RANGE
|
1 GM - 50 GM
|
|
MACHINE SPEED
|
UP TO 300 PPM
|
|
NO OF TRACK
|
4 TRACK TO 6 TRACK
|
|
MAX ROLL WIDTH
|
600 MM
|
|
MAXIMUM POUCH LENGTH
|
150MM
|
|
FILM DRAW MECHANISM
|
SERVO/GEARED MOTOR
|
|
HORIZONTAL AND VERTICAL SEAL
|
MECHANICAL ( CAM BASED)
|
|
TYPES OF SEALING
|
FOUR SIDE SEAL
|
|
FILLER -
|
VOLUMETRIC CUP FILLER 4- 6 TRACK
|
|
POWER CONSUMPTION
|
5 KW, 3 PHASE
|
|
AIR CONSUMPTION
|
6 CFM@ 7 KG/ SQ CM
|
|
MACHINE DIMENSION
|
2000 LX 1400 W X 3600 H ( LXWX H)
|
|
MACHINE WEIGHT
|
1500 KGS
|
|
MACHINE STRUCTURE
|
MS POWDER COATED
|
|
CONTACT PARTS
|
SS-304/SS-316 ( FOOD GRADE)
|
| OPTIONAL ATTACHMENTS |
FILLING ACCURACY |
|
ONLINE PRINTING
|
NITROGEN FLUSHING
|
|
FILLING ACCURACY +/- 1%
|
LAMINATE REJECTION +/- 1%
|
EFFICIENT- ACCURATE PACKAGING MATERIALS /APPLICATIONS
- 1. TEA
- 2. DETERGENT
- 3. MOUTH FRESHNER
- 4. WHOLE SPICES
- 5. PHARMA POWDER
