Model

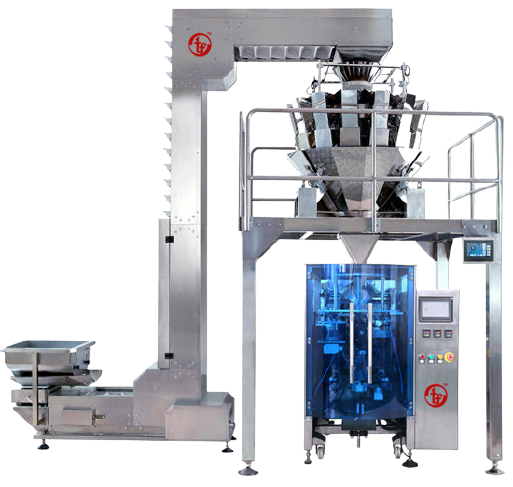

Packing Machine With Multihead Weigher - MODEL tORQ -250-MHW-50

Multihead Weigher Packing Machine

FEATURES- ACCURATE FILLING AND DOSING

BAGGER

PACKING MATERIAL LAMINATED FILM ROLL 2/3/4 LAYER
PACKING RANGE 10 GM TO 1000 GM
MACHINE SPEED WITH 10 HEAD WEIGHER 60 PPM
MACHINE SPEED WITH 14 HEAD WEIGHER 90 PPM
MAX ROLL WIDTH 500 MM
MAXIMUM POUCH LENGTH 290MM
FILM DRAW MECHANISM SERVO/GEARED MOTOR
HORIZONTAL AND VERTICAL SEAL PNEUMATIC/ SERVO
TYPES OF SEALING CENTRAL SEAL
POWER CONSUMPTION 4 KW, 3 PHASE
AIR CONSUMPTION 6 CFM@ 7 KG/ SQ CM
MACHINE DIMENSION 1500 LX 1200 W X 1500 H ( LXWX H)
MACHINE WEIGHT 600 KGS
MACHINE STRUCTURE MS POWDER COATED
CONTACT PARTS SS-304/SS-316 ( FOOD GRADE)

MHW 10H/14H BRAND YAMATO/ ISHIDA/ MULTIWEIGH ( CHINA)

COMBINATION VOLUME 300CC
BUCKET VOLUME 1.3 LITERS
WEIGHING RANGE 10GM-1000GM
ACCURACY 0.2-2 GM
DISPLAY 7 INCH TOUCH SCREEN
OPERATIONAL SPEED 70 DUMPS/ MIN
WEIGH HEADS NO 10/14
WEIGHING METHODS LOAD CELLS BASED
BUCKET OPEN / CLOSE STEPPER MOTOR
PROGRAM NO MAX. 100
PRODUCT CONTACT PARTS SS-304 FOOD GRADE
POWER REQUIREMENTS AC 240 V SINGLE PHASE
IP PROTECTION CLASS IP-54
TEMPERATURE =H37
HUMIDITY 35 TO 85 % NON CONDENSATION
VIBRATION NO POWER MACHINE
OTHERS NO DIRECT SUNSHINE, NO HIGH TEMPERATURE DEVICE,NO DIRECT WIND
DIMENSIONS 950X1150X1330 MM
WEIGHT 350 KGS
PRODUCT LENGTH 60 MM

Z TYPE BUCKET ELEVATOR

HOPPER CAPACITY 40 KG
VIBRATOR RATING 1 KV
MACHINE STRUCTURE SS-304 FOOD GRADE / MS POWDER COATED
BUCKETS PP/ NYLON ( MOULDED)
DIMENSIONS 3000X500X4200 ( LXWXH)
POWER CONSUMPTION 2 KW-3 PHASE
MACHINE WEIGHT 300 KG
OPTIONAL ATTACHMENTS FILLING ACCURACY
HOT INK COADING / PINNING/SIDE GUSSETTING NITROGEN FLUSHING
FILLING ACCURACY < 0.5% LAMINATE REJECTION < 0.5%

EFFICIENT- ACCURATE PACKAGING MATERIALS /APPLICATIONS

  • 1. CEREALS
  • 2. DALIA
  • 3. SEEDS
  • 4. GRANUALS
  • 5. SNACKS FOOD
  • 6. WHOLE SPICES
  • 7. SUGAR
  • 8. TEA
  • 9. DETERGENTS
