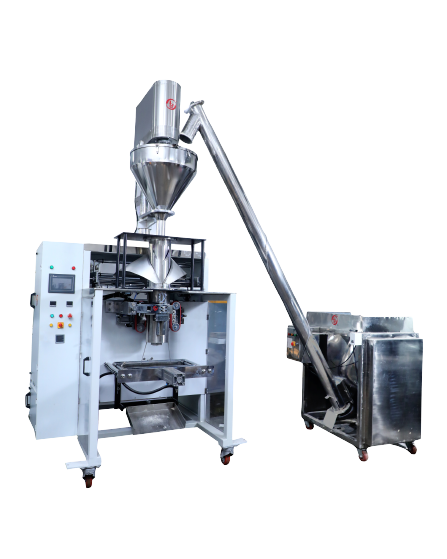

Wheat Flour Packing Machine - MODEL tORQii 10A-(FOR 2KG-5KG-10KG) FLOUR MATERIAL
FEATURES- ACCURATE FILLING AND DOSING
|
PACKING MATERIAL
|
LAMINATED FILM ROLL 2/3/4 LAYER
|
|
PACKING RANGE
|
2KG-5KG-10KG
|
|
MACHINE SPEED
|
25 PACKETS/ MINUTES
|
|
MAX ROLL WIDTH
|
850MM
|
|
MAX ROLL DIAMETER
|
450MM
|
|
MAXIMUM POUCH LENGTH
|
UP TO 580MM
|
|
FILM DRAW MECHANISM
|
SERVO 1 KW
|
|
HORIZONTAL AND VERTICAL SEAL
|
PNEUMATIC
|
|
AUGER FILLER
|
SERVO 3 KW
|
|
TYPES OF SEALING
|
CENTRAL SEAL
|
|
POWER CONSUMPTION
|
9 KW, 3 PHASE
|
|
AIR CONSUMPTION
|
6 CFM@ 7 KG/ SQ CM
|
|
MACHINE DIMENSION
|
1800MMX1400MMX3600MM (LXWXH)
|
|
MACHINE WEIGHT
|
1200KGS
|
|
MACHINE STRUCTURE
|
MS POWDER COATED
|
|
CONTACT PARTS
|
SS-304/SS-316 ( FOOD GRADE)
|
| OPTIONAL ATTACHMENTS |
FILLING ACCURACY |
|
HOT INK ROLLER COADING DEVICE / PINNING ASSEMBLY
|
SIDE GUSSETING
|
|
FILLING ACCURACY < 1%
|
LAMINATE REJECTION < 1%
|
EFFICIENT- ACCURATE PACKAGING MATERIALS /APPLICATIONS
- 1. FLOUR (WHEAT & GRAMS)
- 2. SPICES ( KITCHEN MASALA)
- 3. MAIDA
- 4. MILK POWDER
- 5. NUTRIENT POWDER (PHARMA-PRODUCTS)
- 6. INSTANT MIXES
- 7. PESTICIDES POWDER
